Acuity DRe detectors are the newest generation of DR retrofit solutions designed with the essential conveniences of Radmedix image acquisition and design. Retain the unparalleled image detail you’ve come to expect from our G3 Acuity DR panels at a more price efficient cost without a compromise in our proven quality.
Acuity DRe
Economical Panel Line
These economical DRe panels are light, portable, affordable detectors that can optimize any x-ray room for table and free positioning and table top exams with top-of-the-line image quality. There’s also no need to re-work your existing equipment because Acuity DRe fits existing standard Bucky’s and holders.
- Integrated lithium ion battery technology with an increased 10hr capacity
- Exceptional imaging quality using direct deposited Csi
- Patient dose reduction with reliable and accurate Automatic Exposure Detection (AED)
- Integrated handgrips and lightweight construction for effortless handling
- 140um pixel pitch with wide 16-bit dynamic range
- Supports dual band wi-fi connectivity (2.4gHz/5gHz)
Full-Field AED
Stable and reliable Automatic Exposure Detection technology
Increased Battery Standby
Integrated lithium ion battery with an increased 10hr capacity
IPX-5 Rating
Provides more protection against liquid than our G3 Acuity DR panels
Cassette Size
Cassette size DR panel for seamless retrofit of your existing x-ray system
Acuity DRe Produces Highly Detailed Images
High Contrast With Dynamic Range
Acuity DRe offers enhanced imaging technology providing high contrast detailed images for ultimate diagnostic confidence in any clinical environment. Hover over the x-ray image to magnify quality.
Superior image sharpness with enhanced image processing algorithms
Direct Deposited CSI technology for Ultra Low dose imaging
Increase in MTF from previous generation detectors for better spacial resolution
Increased DQE at lower doses to reduce noise
Patient dose reduction with reliable lossless AED technology
Quick acquisition time, view image in as little as 2.5 seconds.
improved liquid protection
more reliable performance
seamless mobile application
Charging Dock
Maximum Power for Maximum Care
Acuity DRe 1417 and 1717 wireless systems include a charging dock station between exams to keep the detector at maximum power in the most demanding clinical environments eliminating the hassle of charging and changing batteries.
Offers a dual purpose, safe stowage location for the technologist
Allows for wall mounting or stood on counter top
Rapid and reliable battery “trickle charging”
Offers longer battery performance throughout a clinical day
Supports both 14×17 and 17×17 wireless models

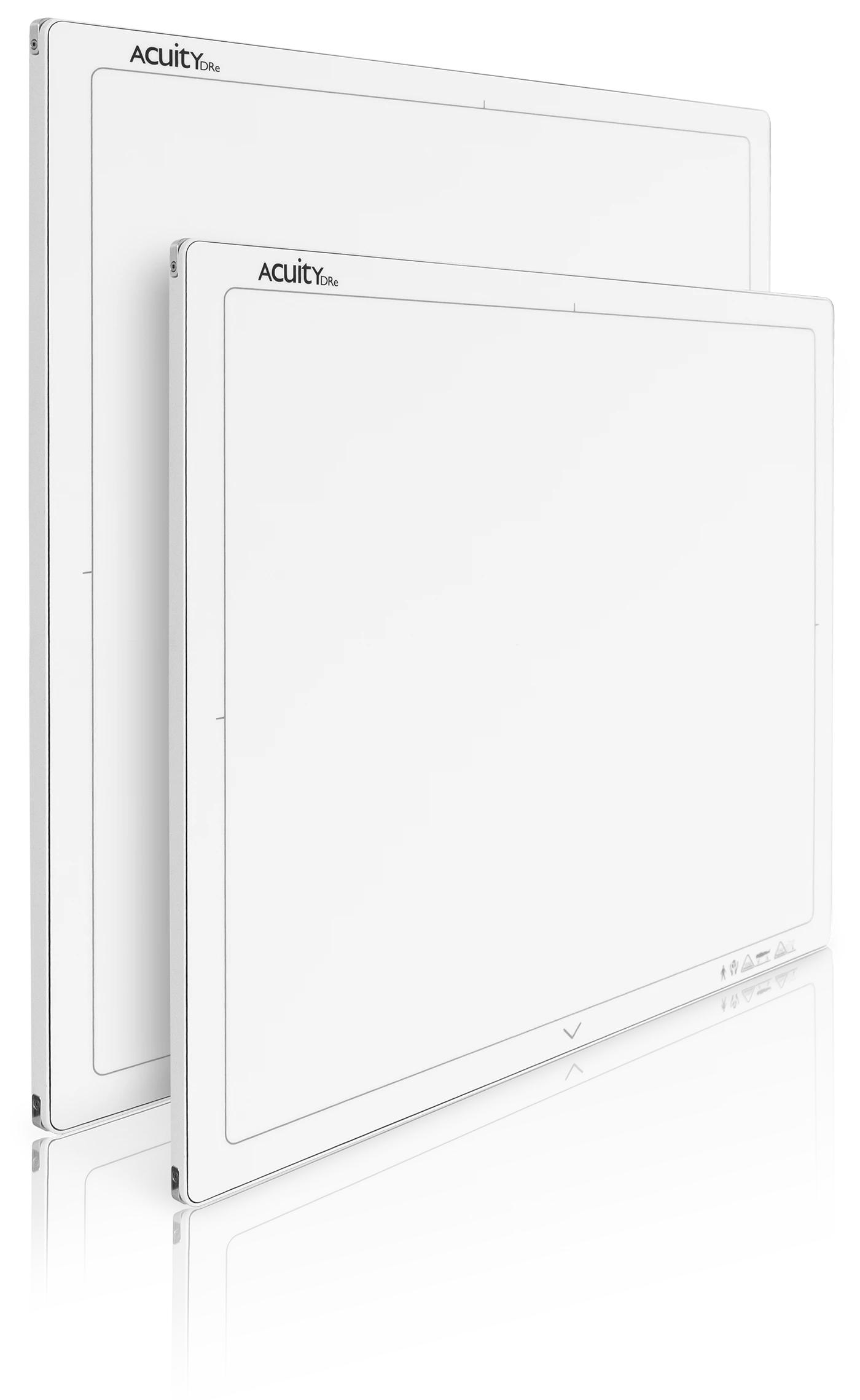

Our Full Portfolio of Acuity DRe Panels

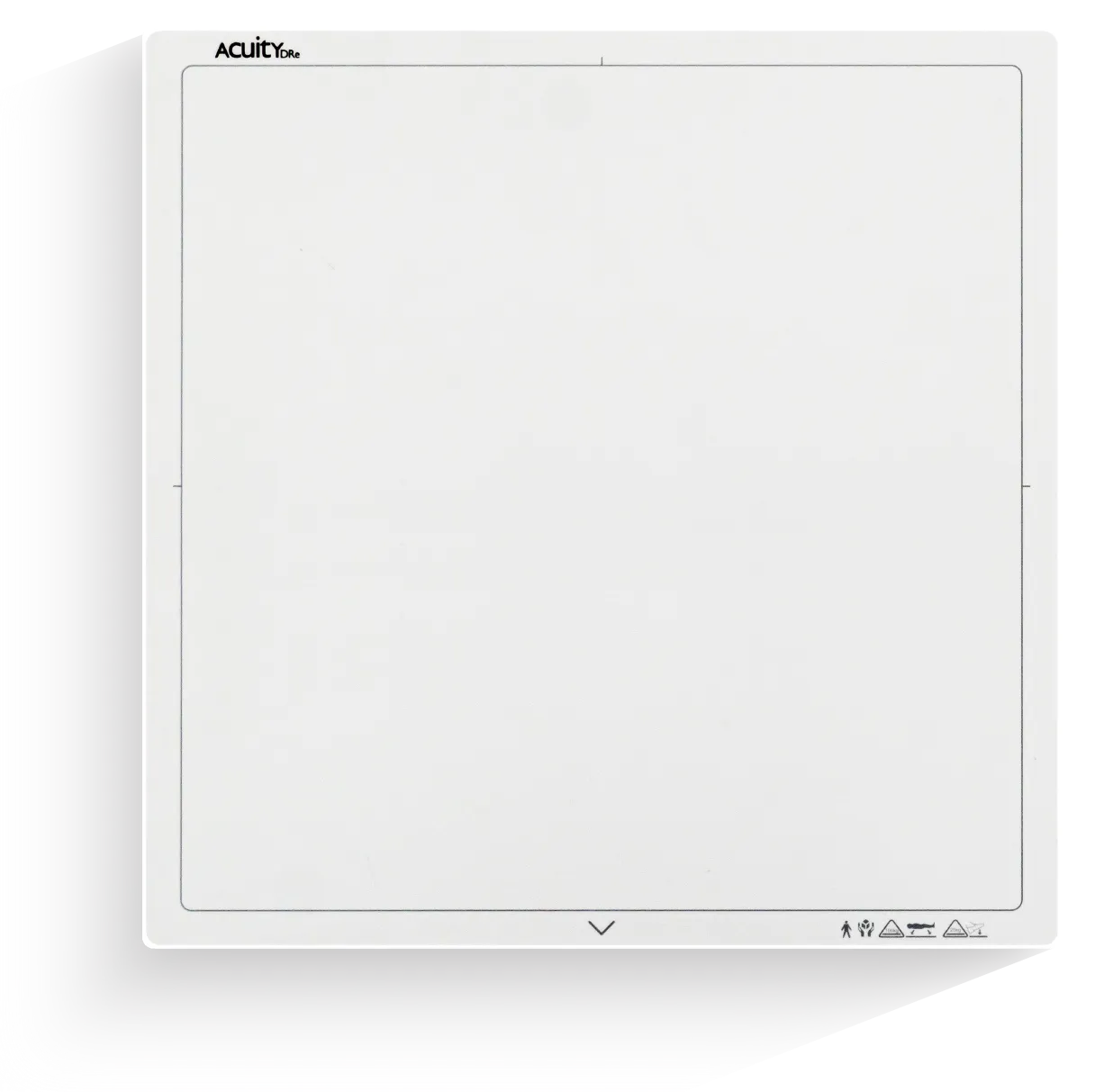

Acuity DRe 1717
Tethered & Wireless | IPX—5 Rating
Medical & Chiropractic
Veterinary Systems
The Acuity 17×17 DRe is a light and affordable DR panel that offers large format x-ray imaging for the highest quality detail in all patients without worrying about panel rotation.
Perfect for low dose exams and dose-lowering initiatives
Cassette size fits in standard bucky’s and holders
Maximized field of view, perfect for no-rotation medical, vet, or chiropractic exams
Integrated hand grip for easy carrying and positioning – wireless model
Smooth sealed surfaces lock out moisture (IPX-5 rating wireless model)

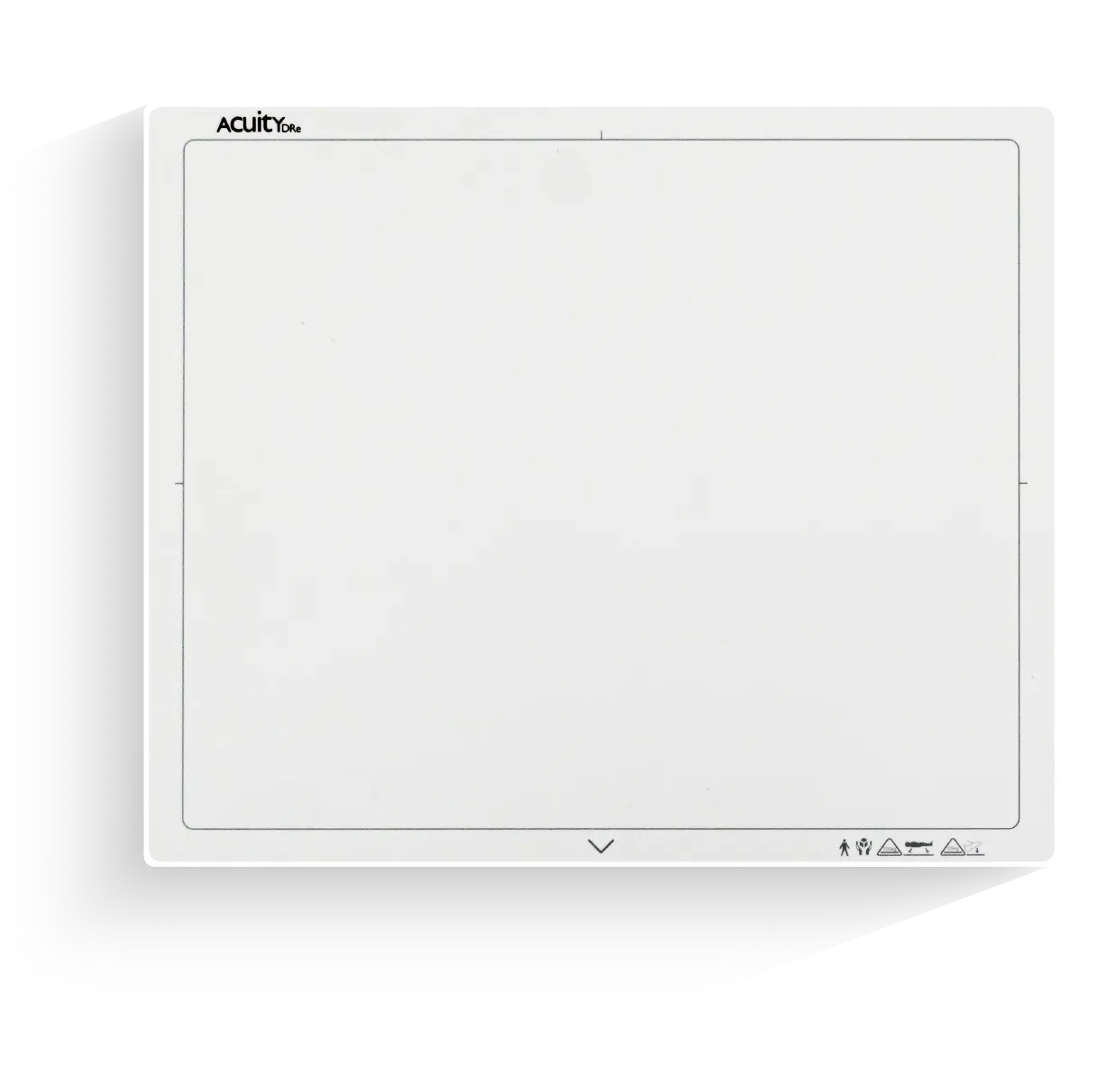

Acuity DRe 1417
Wireless | IPX—5 Rating
General & Mobile Radiography
Vet Portable
The Acuity 14×17 DRe panel is ideal for those focusing on extremity exams or wireless panel mobility in or out of the upright bucky.
Perfect for low dose exams and dose-lowering initiatives
Cassette size fits in standard Bucky’s and holders
Integrated hand grip for easy carrying and positioning – wireless model
Extended battery life – up to 10 hrs standby time
Smooth sealed surfaces lock out moisture (IPX-5 rating – wireless model)
Increased Standby Battery Power
Acuity DRe panels have enhanced integrated lithium ion battery technology with an improved 10hr battery capacity. This allows the technologist to perform exams in the most demanding clinical environments without the burden of changing a battery. DRe panels have reliable performance, when it matters the most.
Integrated DR Handgrip
Acuity DRe panels have been ergonomically designed for easy carrying and positioning by utilizing two built in body grips. One grip is for quickly lifting up the panel from an angle off any surfaces such as a patient table or removing from an x-ray bucky. The other grip is used to transport the panel between workstations. For extended transportation, we offer external portable DR protection cases.
Portable DR Protection Cases
Acuity DRe panels are available with both gridded and non-gridded protection cases to provide ultimate panel security for any wireless panel size. Cases come equipped with an ergonomical handle as well as lock-and-secure latch to keep the detector secure during handling. Combine with our tablet PCP and achieve ultimate portability.
